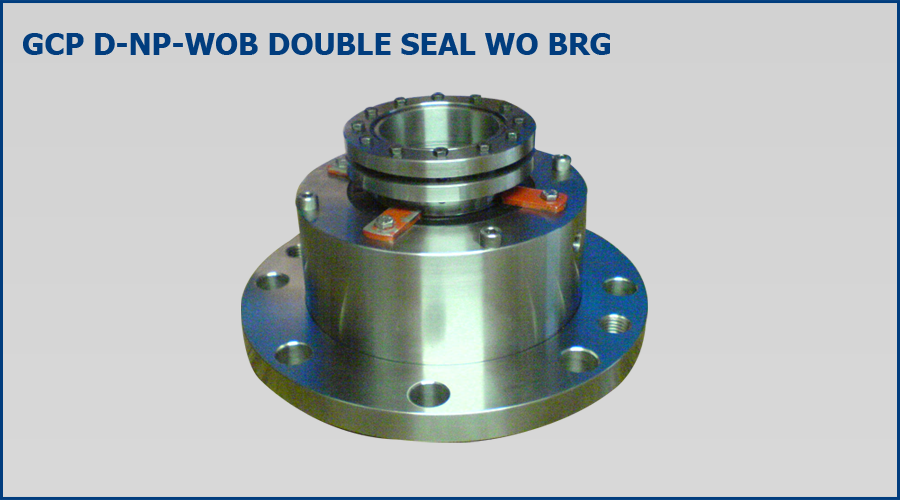

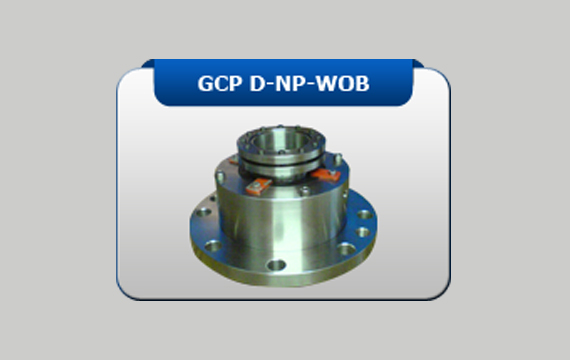

D-NP-WOB

DOUBLE SEAL WITHOUT BEARING FOR NORMAL PRESSURE AND FOR CORROSIVE ATMOSPHERE.

Design Features

• INBOARD SEAL: TYPE 59U/C/SIC/PTFE/SS
• OUTBOARD SEAL: 58B/C/SIC/VITON/SS
• HOUSING,GLAND PLATE AND SLEEVE: SS
• OUTER BODY FOR : SS

Operating Limits

• PRESSURE: FROM FULL VACUUM UPTO 10 KG/CM2 PRESSURE.
• TEMPERATURE RESISTANCE UPTO 120 DEG CENT.
• RPM UPTO 250.
• RESISTANCE TO VIBRATION
• SELF ALIGNING MECHANICAL SEAL.
• INDEPENDENT TO DIRECTION OF ROTATION
