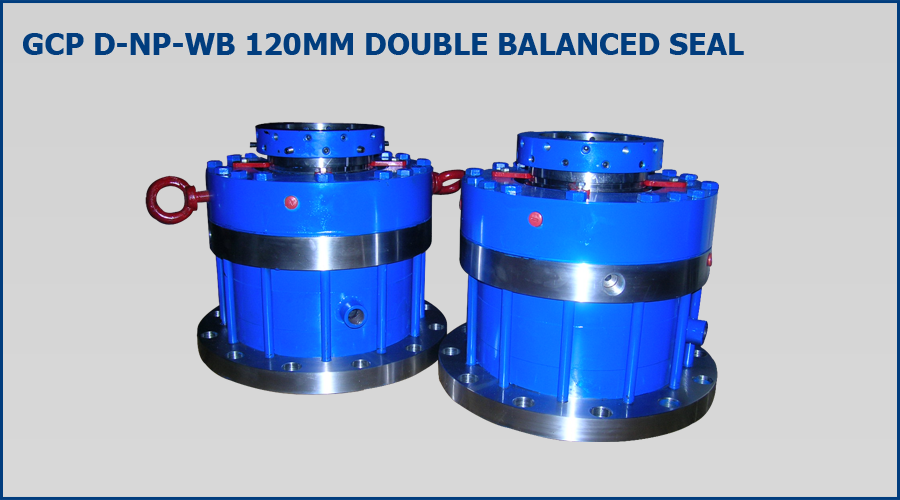

D-NP-WB

DOUBLE MECHANICAL SEAL WITH BEARING FOR NORMAL PRESSURE.

Design Features

• INBOARD SEAL: TYPE 59U/C/SIC/PTFE/SS
• OUTBOARD SEAL: 58B/C/SIC/VITON/SS
• HOUSING,GLAND PLATE AND SLEEVE: SS
• OUTER BODY FOR : MILD STEEL

Operating Limits

• PRESSURE: FROM FULL VACUUM UPTO 10 KG/CM2 PRESSURE.
• TEMPERATURE RESISTANCE UPTO 120 DEG CENT.
• RPM UPTO 250.
• RESISTANCE TO VIBRATION
• SELF ALIGNING MECHANICAL SEAL.
• INDEPENDENT TO DIRECTION OF ROTATION
