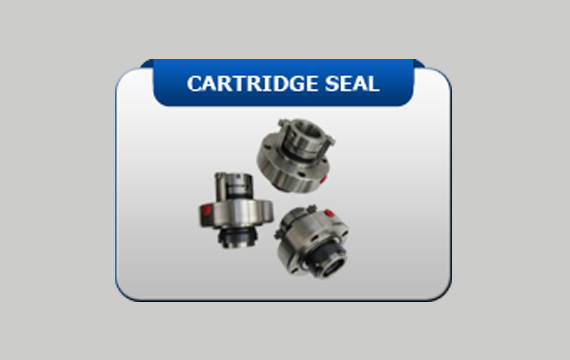

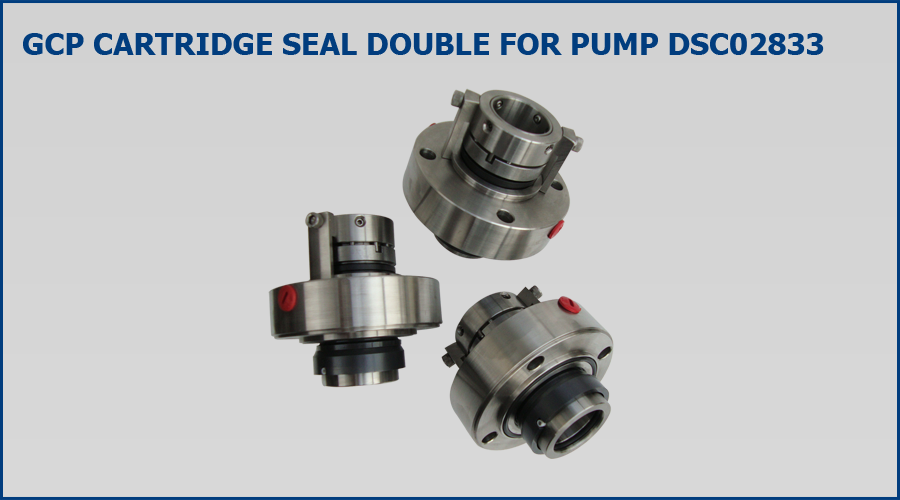

CARTRIDGE SEAL FOR PUMPS-DOUBLE

Design Features

• Double Cartridge Mechanical seal
• Designed for heavy duty slurry seal
• Hydraulically-balanced design
• Spring out of the product.
• Anti-rotation pin with o-ring protecting seal face

Operating Limits

• Size=20mm~120mm/
• TEMP=up to 80°C without water quench
• Up to 200°C with water quench
• PRESSURE=up to 15kg/cm2.
• SPEED =20m/s/4000fpm
