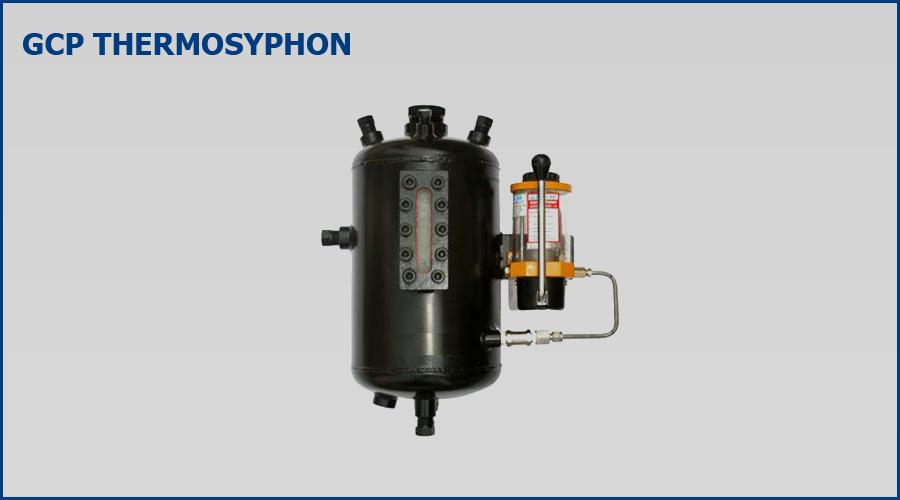

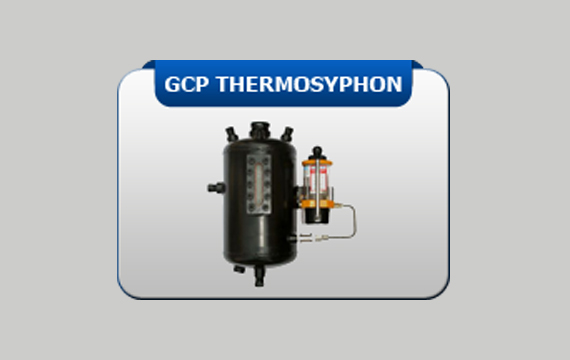

Thermosyphon Vessels

Thermosyphon vessels can be used to provide a source of clean, Pressurized barrier fluid to Double mechanical seals in back to back and nonpressurised buffer fluid for tandem seal Arrangement. The Barrier fluid enters the Thermosyphon Vessel, where it is cooled by water circulating through cooling coil to bring down the temperature of barrier fluid and back to the seal chamber. Super Thermosyphon arrangement is very effective.

Performance Limits
  • Capacity : 7.5 Liter
  • Hyd. Test Pressure : 30 Kg
  • Working Pressure : 20 Kg
  • Max. working temp.: 180°C
  • Heat Transfer area of cooling coil : 0.3m²
  • Cooling water flow rate
  • Recommended: 12 Ltrs /min
  • Max. Level Value : 5.5 Ltrs
  • Min. Level Value : 3.5 Ltrs
Metal Parts
  • Thermosyphon Shell : Carbon Steel / SS 316/SS304
  • Cooling Coil: SS 304 / SS 316
Accessories
  • Pressure Gauge (0- 40 kg/c m²)
  • For Pressure Measuring of the vessel
  • Level Gauge For Liquid Level Indicate of the vessel
  • Hand Pump For recharge of the vessel With additional quantity of barrier fluid when
  • Thermosyphon is under pressure and Liquid level is low.
Connection Size:
  • Buffer fluid Inlet - A ½” NPT
  • Buffer fluid Outlet – B ½ NPT
  • Cooling water Inlet – C ½” NPT
  • Cooling water Outlet – D ½” NPT
  • Hand Pump Connection – E – ¼: NPT (Refilling Connection)
  • Filling Connection – F –1 ¼” NPT
  • Pressure Gas Connection – G ½” NPT
  • Pressure Gauge Connection – H 3/8” NPT
  • Drain – I ½” NPT Safety Valve Connection – J ½” NPT
