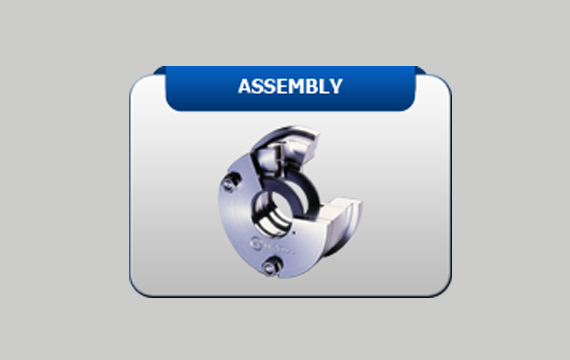

Assembly

Carbon Segmented Sealrings
Carbon Gland Ring

The carbon gland ring offered by us is the segmented seal ring with gas joints having overlapping mortise. These are manufactured using superior quality material and fits around a rotating shaft to prevent the leakage of oil or other fluids. Available in different shapes and sizes, these rings are thermal shock resistant and corrosion resistant. Tested on various quality parameters, the range has the ability to withstand adverse environmental conditions

Segmented seal ring, with gas joints having overlapping mortise e.g. blowers, agitators, dryers

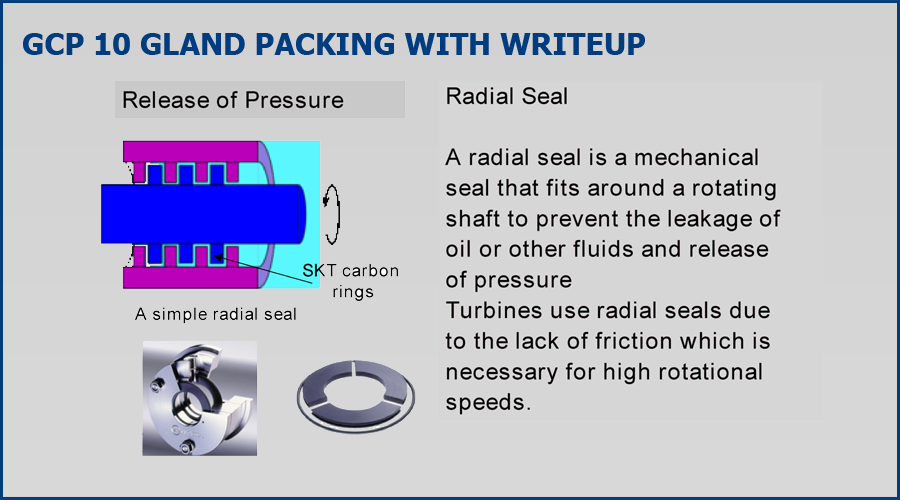

A radial seal is a mechanical seal that fits around a rotating shaft to prevent the leakage of oil or other fluids and release of pressure Turbines use radial seals due to the lack of friction which is necessary for high rotational speeds.

  • Temperature resistance up to 700 deg cent.
  • Acid, alkali resistant.
  • Self lubricating material.
  • Capable of dry running.
  • Contact seals, e.g. for the sealing of piston rods in dry running compressors.
  • Can be made in 3,4 or even 6 segments
  • Can be made with straight cut or overlapping cut designs
  • Make with best lubricating and sliding material to prevent seal housing or Shaft from wearing
